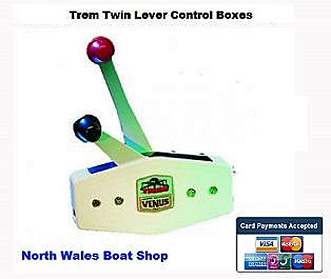

Twin Lever Outboard Engine Control Box-Boat Engine Controls







twin lever outboard engine control box trem

Trem Twin Lever Outboard Engine Control Box

Trem Twin Lever Outboard Engine Control Box, Trem Side Mount Twin Lever Outboard Engine Control Box.
For use with 23LC / 33C Outboard Control Cables
Can be mounted in a right or left position
Levers in light alloy aluminium
Supplied with the fitting kit
L53 74 228
White Housing
The outboard engine control box Compatible with most outboard engines

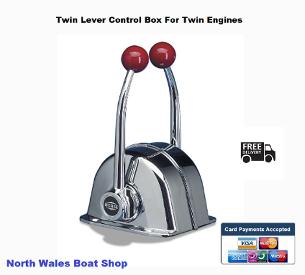

Twin Lever Boat Controls






teleflex mt3 twin lever boat controls


Teleflex MT3 Twin Lever Boat Controls

Teleflex MT3 twin lever boat controls for single or twin boat engine installations depending on model. •Sturdy, chromed twin lever boat controls provides positive one-handed engine control •Neutral safety switch prevents starting in gear - supplied as standard •Pulling out levers to the side allows neutral run-up •Built-in friction drag helps prevent slippage and throttle creep •Mechanical advantage - Shift 2.77:1 - Throttle 3.27:1 •Use with 33C cables.

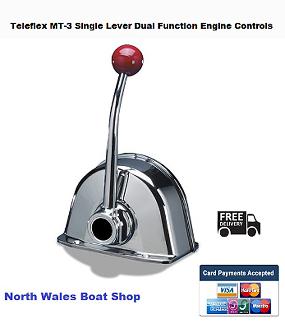

Single Lever Outboard Controls





Teleflex MT3 Single Lever Boat Engine Boat Controls


Teleflex MT-3 Single Lever Boat Engine Boat Controls

The Teleflex MT-3 single lever boat engine boat controls control box is Ideal for inboards, stern drives and outboards,Teleflex MT-3 boat engine control box combines classic binnacle control styling with dual function levers, a neutral safety switch and an engine warm-up feature! Control throttle and shift with one lever instead of two.
This boat engine control box uses 3300/33C type cables (single and dual lever) and 4300/43 type cables (single lever version only).

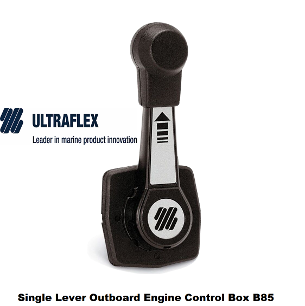

single lever outboard control box b85




Single Lever Outboard Control B85

Single lever outboard engine boat control B85 / dual action control to operate both outboard engine throttle and gear. Suitable for any type of boat with outboard engine, inboard or I/O power plants. For use with all Ultraflex outboard engine control cables. The side mounted boat engine control box is virtually flush mounted.






Twin Lever Stainless Steel Outboard Engine Control Box






Twin Lever Stainless Steel Outboard Engine Control Box



Twin Lever Stainless Steel Outboard Engine Control Box

Twin lever stainless steel outboard engine control box. The outboard engine control box can be used for outboard engine, sterndrive or inboard engines. The control box is compatible with C2, C8, C22 outboard engine control cables. The twin lever control box is fitted with anchor points and all connectors. The C22 Outboard engine control cables are also shown above to fit Mercury, Mariner, Evinrude, Johnson, outboard engines.

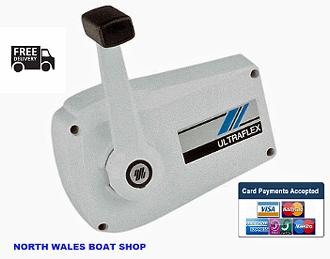

Ultraflex Outboard Engine Control Box







outboard engine control box ultraflex


Outboard Engine Control Box

Ultraflex outboard engine control box to connect to boat controls. Will accept all cables except old omc type control cables. The outboard engine control box will need an adaptor kit to fit mercury control cables sold below. The control boxes are fitted with an outboard engine neutral lock as standard. The outboard engine control box is either in either black or white.

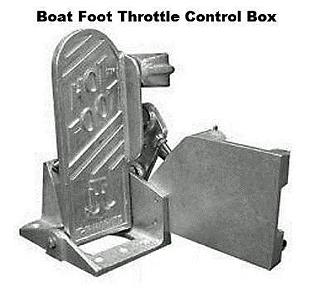

Boat Foot Throttle






hotfoot boat foot throttle




Hotfoot Boat Foot Throttle


Introducing for the new season the HOTFOOT boat foot throttle control pedal. Manufactured from Aluminium and Stainless steel for the ultimate in corrosion protection. The hotfoot boat foot throttle control gives better response.

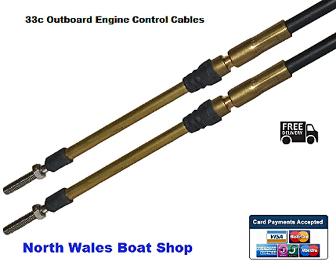

Outboard Engine Boat Controls Control Cables









outboard engine control cables 33c c2

33C Outboard Engine Control Cables

Teleflex 33c c2 outboard engine control cables in black. Recommended for use in more vigorous outboard control cables applications. Minimum bend radius 200mm.Available in 6 feet to 20 feet. Please select length on the drop down box on the right. The outboard control cables are Universal for most outboard, outdrive and inboard units. The outboard control cables have Stainless steel end fitting and cable wire Standard 33C rod 10-32UNF threaded ends Nominal 75mm travel. The outboard engine control cables fits the following outboard engines Force, Selva, Yamaha, Suzuki, Tohatsu, Honda, Nissan.
Sterndrive
Volvo Penta, Yanmar, Volkswagen.
Inboard
All

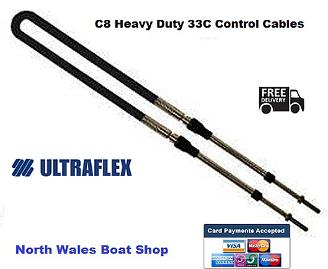

Heavy Duty Outboard Engine Control Cables







outboard engine control cable heavy duty c8 33c





Ultraflex Heavy Duty C8 33C Outboard Engine Control Cables

Heavy duty C8 33C Outboard engine control cables, these control cables are the same as Mach Zero outboard engine control cables. They are the same as the 33c control cables but more heavy duty.

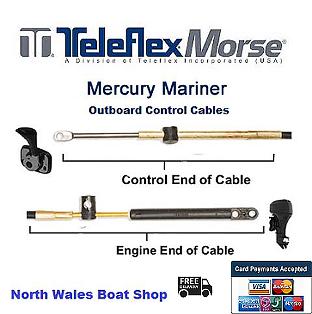

Outboard Engine Control Cables Mercury Mariner







outboard engine control cable mercury mariner





Mercury Mariner Outboard Engine Control Cable

Mercury Mariner 600 outboard engine control cables. The outboard engine control cables are a replacement outboard engine control cable for Mercury and Mariner outboard engines. Teleflex outboard engine quality control cables.




Mercury Edge Control Cables








mercury edge boat engine control cables





Mercury Edge Boat Engine Control Cables

Mercury Edge Boat Engine Control Cables EEC-005-XX (XX Is The Length Of Cable In Feet) Are Used For Boat Gear Shift And Throttle Application. Different Designs Of Boat Engine Control Cables Are Used Depending On The Engine Type And Installation
Applicable For Mercury® & Mercruiser® Engines
Travel: 97 Mm | EDGE Conduit: 8.6 Mm | Inner: 2.75 Mm (Coated Inner).

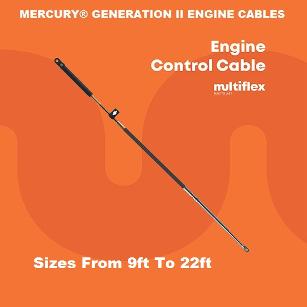

Mercury Generation 2 Control Cables








mercury generation 2 control cables

MERCURY® GENERATION II BOAT ENGINE CABLES


› Standard Control Cables have Stainless Steel or Brass Fittings depending upon the type of cable
› Standard Control Cables have Minimum Bend Radius of 8”
› Standard Control Cables have black outer jacket for effective durability and offer great resistance to UV, Petrol, Fluids & other chemicals.
Mercury Generation 2 Boat Engine Control Cables EC-036-XX (XX is length of cable in feet) are used for Shift and Throttle application.
Multiflex Mercury Generation 2 Boat Engine Control Cables are interchangeable with most common SeaStar Solutions®, Morse®, Ultraflex® Engine Control Cables.
Applicable for Mercury® Generation II series engines
Travel : 90 mm | Conduit: 7.0 mm | Inner: 1.9 mm SS-Solid Wire | End Thread: 10-32 UNF

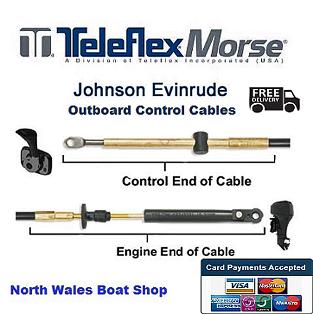

Outboard Engine Control Cables Johnson Evinrude








outboard engine control cables johnson evinrude







Johnson Evinrude Outboard Engine Control Cables

Johnson Evinrude outboard engine control cables, Teleflex outboard engine control cables in a range of sizes. To fit all later models of Johnson Evinrude outboard engine the control cables are the 479 series to fit outboard engines from 1979 onwards.

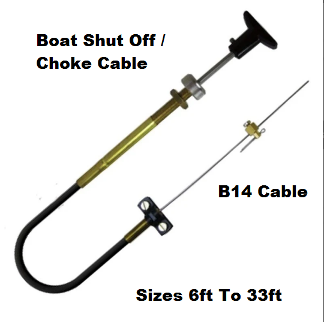

B14 Boat Fuel Shut Off Cable








B14 boat fuel shut off choke cable




B14 Boat Fuel Shut Off-Choke Cable

Although mainly used for boat fuel shut off these cables have many applications eg boat choke cable. They consist of a black “T” bar handle fitted to a solid stainless-steel core inner cable in a brass housing.
• For panel thickness up to 32mm
• Designed for throttle, fuel shut off and other applications
• Supplied with stop collar/pivot, saddle clamp and shim for universal mounting
• Available in a range of lengths from 6ft to 33ft
